GTBZ30S

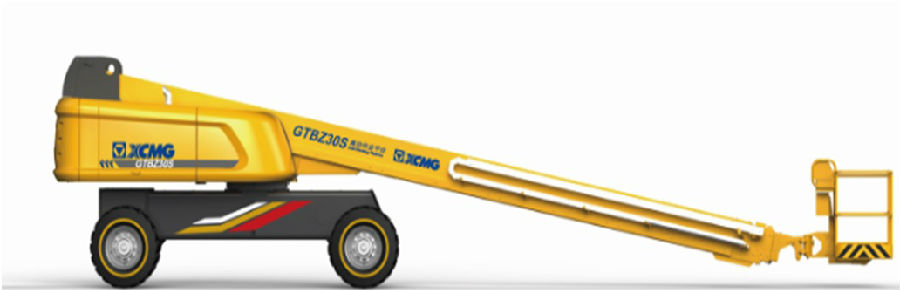

GTBZ30S Straight Boom Type Aerial Work Platform


It is a straight boom aerial work platform with the widest scope of application at the elevation of 30 meters. It is featured by: the widest scope of application among the products operating under the same elevation to enhance the ability of operation; the strongest capacity of loading within the industry to satisfy the user’s demands on heavy load; and the excellent capacity of climbing drive to adapt itself to all kinds of complicated road conditions. The machine may be widely used for building operations, bridge & equipment maintenance, shipbuilding, petrochemical engineering and other related industries.

Product Highlights

(1) Super-Strong Capacity of Climbing Drive

The electronic steering and wide foam tyres both attribute to an excellent capacity of climbing drive, thus adapting itself to all kinds of complicated road conditions.

(2) Strongest Capacity of Loading within the Industry

The maximum capacity of loading, i.e. 480kg, ranks the first within the industry, thus satisfying the user’s demands on heavy load.

(3) Excellent Working Range

The double-load operating-curve control technologies realizes a real-time monitoring over loads, thus producing a strong capacity of operation, as well as a widest working range at the same elevation.


The main technical parameter

Parameters Table (Technical Specifications)

Item

Unit

Parameter

a Overall Length

mm

13380

b Overall Width (shaft retracts/stretches)

mm

2490/3800

c Overall Height

mm

3070

d Wheel Base

mm

3800

Maximum Working Height

m

32.2

Maximum Platform Height

m

30.5

Maximum Working Range

m

23.1

Maximum Load Capacity

kg

480

Boom Luffing Range

°

-11+75

Rotation Angle of Rotating Platform

°

360°

Maximum Tail Wagging(shaft retracts/stretches)

mm

2085/1430

Platform Size

mm

2400×900

Rotation Angle of Platform

°

180

Total Weight

kg

18300

Maximum Travel Speed

km/h

5

Minimum Turning Radius(shaft retracts/stretches)

m

10.8/8.2(Two-turn)

6.8/5.8(Four -turn)

Minimum Ground Clearance

mm

260

Maximum Grade Ability

%

45

Tire Specification

-

385/65D22.5

Engine Model

-

Perkins 1104D-44T

Rated Power of Engine

kW/(r/min)

55.5/2400
