  Machinery


GTBZ22S

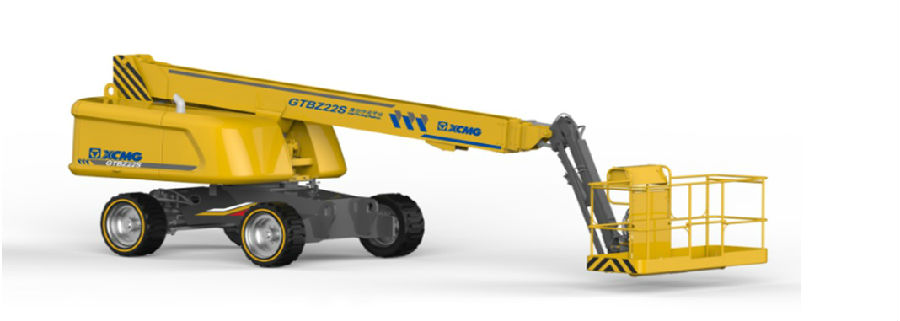

GTBZ22S Straight Boom Type Aerial Work Platform


It is the highest-efficiency straight boom aerial work platform applied at the elevation of 22 meters. Being four-wheel driven, it has the top-ranking gradeability among the industry; provided with the double-operating-radius curve, the machine has the industry-leading operating altitude/radius and carrying capacity. This type of machine, not only simple and high-efficiency, but also safe and reliable, may satisfy the diversified demands of different industrial users engaged in building construction, bridge and equipment maintenance, shipbuilding, petrochemical engineering, lease etc.

Product Highlights

(1) Highest Efficiency in Operation

Being the highest-efficiency product applied at the elevation of 22 meters, it may be quickly lifted from the ground to the maximum altitude of operation just within 68 seconds.

(2) Outstanding Performance of Operation

With the maximum carrying capacity of 340kg, it has the industry-leading altitude and radius of operation, and may satisfy relevant construction demands on heavy loads and large operating spaces.

(3) Excellent Off-Road Performance

The four wide tyres, the real-time drive and the novel axle balancing system that may automatically make a response to the terrain will strengthen together the stability in driving on rough roads.


The main technical parameters

Parameters Table (Technical Specifications)

Item

Unit

Parameter

a Overall Length

mm

10150

b Overall Width

mm

2490

c Overall Height

mm

2800

d Wheel Base

mm

2500

Maximum Working Height

m

23.7

Maximum Platform Height

m

22

Maximum Working Range

m

18.3

Maximum Load Capacity

kg

340

Boom Luffing Range

°

-5+75

Rotation Angle of Rotating Platform

°

360

Maximum Tail Wagging

mm

1550

Platform Size

mm

2400×900

Rotation Angle of Platform

°

180

Total Weight

kg

12500

Maximum Travel Speed

km/h

6

Minimum Turning Radius

m

6

Minimum Ground Clearance

mm

230

Maximum Grade Ability

%

45

Tire Specification

-

355/55D625

Engine Model

-

Perkins 404D-22T/Deutz D2011 L04i

Rated Power of Engine

kW/(r/min)

43/(2600)

41/(2300)
