  Machinery


GTBZ18A1

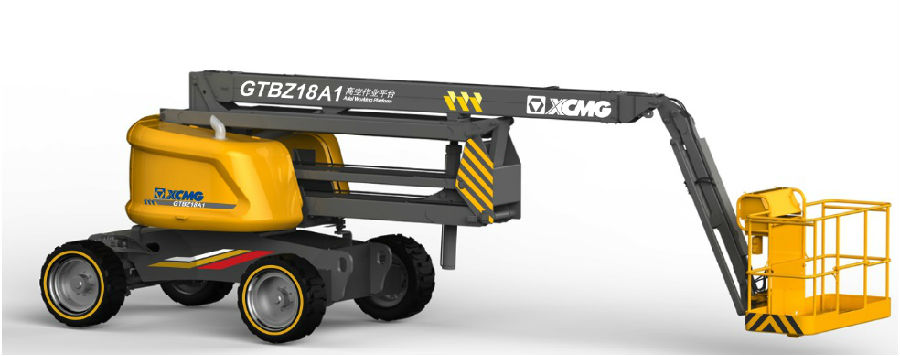

GTBZ18A1 Articulated Boom Type Aerial Work Platform


For 18m level ‘Σ’ type linkage folded hybrid boom aerial work platform, its readability, operating performance and humanization has reached to the advanced level in the industry. The linkage folded hybrid arm has compact structure and flexible stretching, which is easy to get to the unreachable areas; with four-wheel drive, off-road wide tires and axle balancing device, the equipment has excellent drive and terrain adaptability. The model manipulation is simple, safe, reliable, accurate and efficient, which can meet the requirements of the construction, petrochemical, venues, leasing and other industry users.

Product Highlights

(1) Strong Road Adaptability

With four-wheel drive, off-road wide tires and new axle floating technology, the drive is superior, and the road adaptability is strong, with the maximum grade ability of 45%, reaching to the highest level in the industry.

(2) Accurate and Efficient Operation

“Σ” type linkage folded hybrid boom design; the overall layout is compact and tail swing is small, which is easy to store and access to the narrow space to work; the extending of the boom body is flexible, without regional restrictions and with a wide operating range. It has upward, downward and crossed precise multidirectional positioning functions and excellent extending features.

(3) Compactness and flexibility

The complete machine is arranged compactly and crank boom recovery gesture is adopted during transportation with transportation length of only 7m; meanwhile, it adopts tailless wagging design, which is convenient for storage and entering into narrow space for operation.


The main technical parameters

Product Parameter List (Technical Specification)

Item

Unit

Parameters

a Overall Length

mm

9080

b Overall Width

mm

2490

c Overall Height

mm

2680

d Wheel Base

mm

2500

Maximum Working Height

m

20.1

Maximum Platform Height

m

18.4

Maximum Working Range

m

11.9

Maximum Load Capacity

kg

230

1st Boom Luffing Range

°

0~+70

2nd Boom Luffing Range

0~+75

Crank Arm Luffing Range

-65~+70

Rotation Angle of Rotating Platform

°

360

Maximum Tail Wagging

mm

0

Platform Size

mm

1830×760

Platform turning angle

°

180

Total Weight

kg

10600

Maximum Travel Speed

km/h

6.0

Minimum Turning Radius

m

6.0

Minimum Ground Clearance

mm

230

Maximum Grade Ability

%

45

Tire Specification

-

355/55D625

Engine Model

-

Perkins 404D-22

Rated Power of Engine

kW/(r/min)

38/(3000)
