GTBZ14J

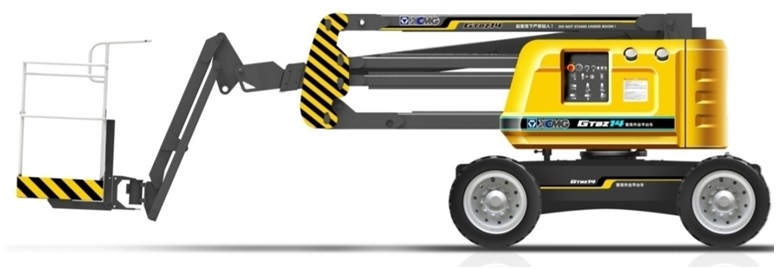

GTBZ14J Articulated Boom Type Aerial Work Platform


   14m-level articulated boom aerial work platform aiming at meeting customer demand has intelligent and perfect control system, adopts humanized layout and lubrication-free design, is easy for use and maintenance and provides comprehensive safety protection and abundant configuration options.

Product Highlights

(1)Flexibility and efficiency

-type double link jib has characteristics of compact structure and flexible extension, which can achieve vertical lifting and horizontal extension and has very strong obstacle climbing ability;180 rotatable platform provides bigger operation range;Narrow-type rotary table with compact structure can achieve zero tail wagging and improve operation efficiency.

(2) Super strong site adaptability

Cross-country type chassis, four-wheel drive system, pouring-type cross-country wide tyre, full-time axle balanced system and 38kw strong power are configured so that the equipment has excellent terrain adaptability.

(3) Advanced performance, safety and reliability

Full-range operation, visual and friendly control panel and easy operation; Electro-hydraulic proportional system control is accurate and efficient. Protective measures such as chassis incline protection, platform overload alarming, emergency landing, safety speed limit, flexibility start-stop technology, etc. are provided.

The main technical parameters

Item

Unit

Parameters

a Overall Length

mm

6690

b Overall Width

mm

2260

c Overall Height

mm

2130

d Wheel Base

mm

2100

Maximum Working Height

m

15.75

Maximum Platform Height

m

14.05

Maximum Working Range

m

8.22

Maximum Load Capacity

kg

230

1stBoom luffing Range

0+60

2ndBoom luffing Range

-8+75

Crank Arm Luffing Range

-60+80

Rotation Angle of Rotating Platform

355

Maximum Tail Wagging

mm

0

Platform Size

mm

18307601150

Platform turning angle

180

Total Weight

kg

6900

Maximum Travel Speed

km/h

6.1

Minimum Turning Radius

m

4.5

Minimum Ground Clearance

mm

250

Maximum Grade Ability

%

45

Tire Specification

-

315/55D20

Engine Model

-

Perkins

404D-22

Rated Power of Engine

kW/(r/min)

38/3000
